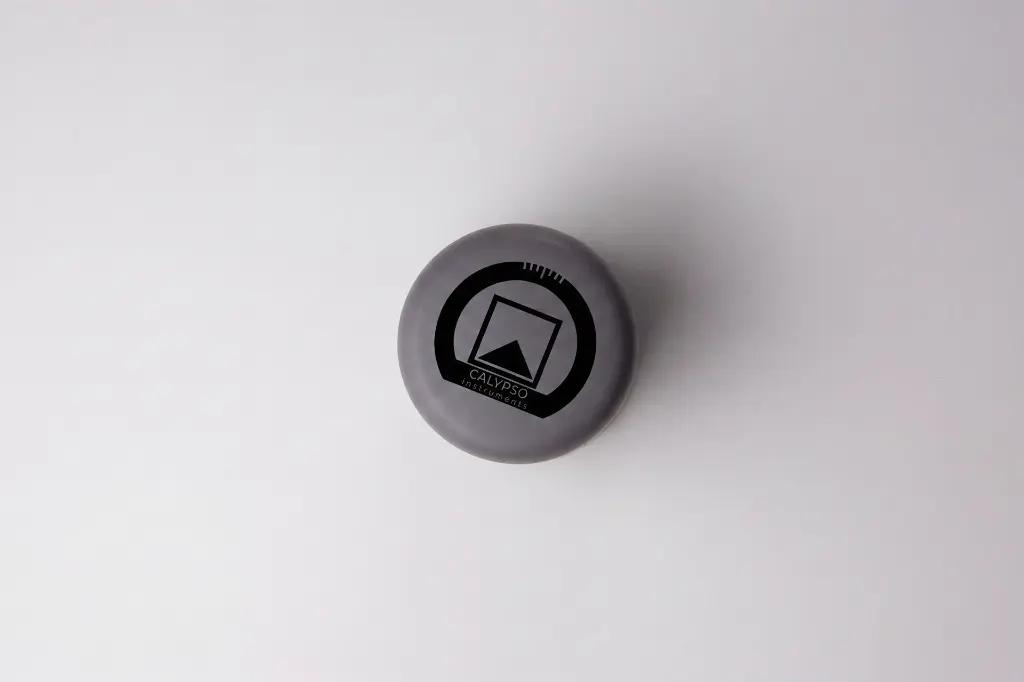

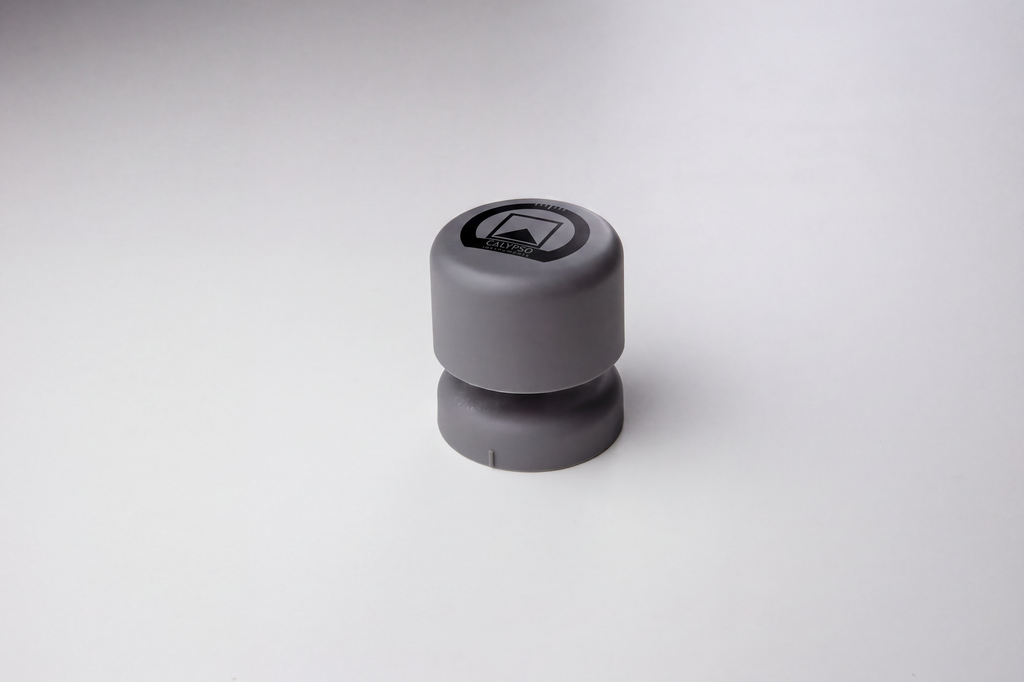

Ultrasonic Portable Mini Ballistics Wind Meter

https://www.sailingmeters.com/web/image/product.template/776/image_1920?unique=2f0383f

Pocket-sized ultrasonic wind meter for long range. 43 mm, 78 g, Bluetooth, no moving parts.

US$ 449.00 449.0 USD US$ 449.00

0.00 €

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

            Pocket-sized ultrasonic wind meter for long range.

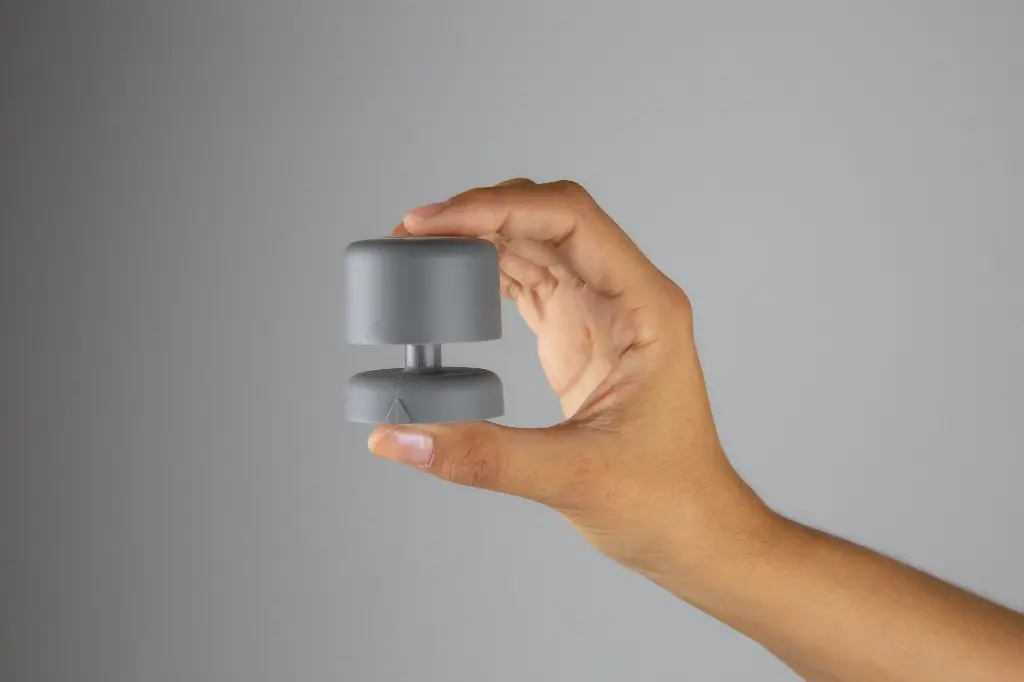

            Wind speed and direction, live or logged. Four ultrasonic transducers and no moving parts keep it robust and dependable. At 43 mm and 78 g it rides in a pocket and sets up anywhere on the line.

            Built for the shot.

            Reads 0.5 to 45 m/s (1.12 to 100 mph) at 1 Hz. Thread it onto any standard tripod with the 1/4" mount, or add the mast mount (CMI1028) or phone mount (CMI1023).

            Wireless, start to finish.

            Qi wireless charging in about an hour. Up to 300 hours of active use per charge. Bluetooth Low Energy, no data wires. IPX8 rated.

            Certifications



            Compatible with the free Calypso Ballistics App.

            Available for iOS and Android. Pair the Mini Ballistics over Bluetooth for live wind, logged with every session. Add a WeatherDot Ballistics and the app computes air density from its temperature, humidity and pressure.

             Download it for IOS

             Download it for Android

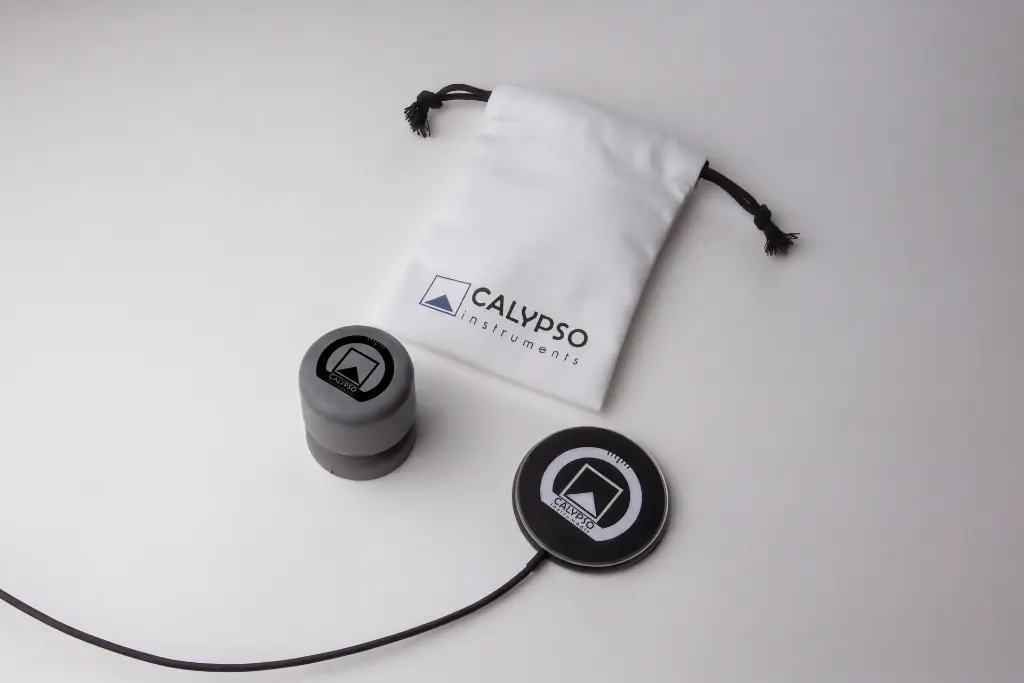

            What’s in the box.

            • Ultrasonic Portable Mini Ballistics

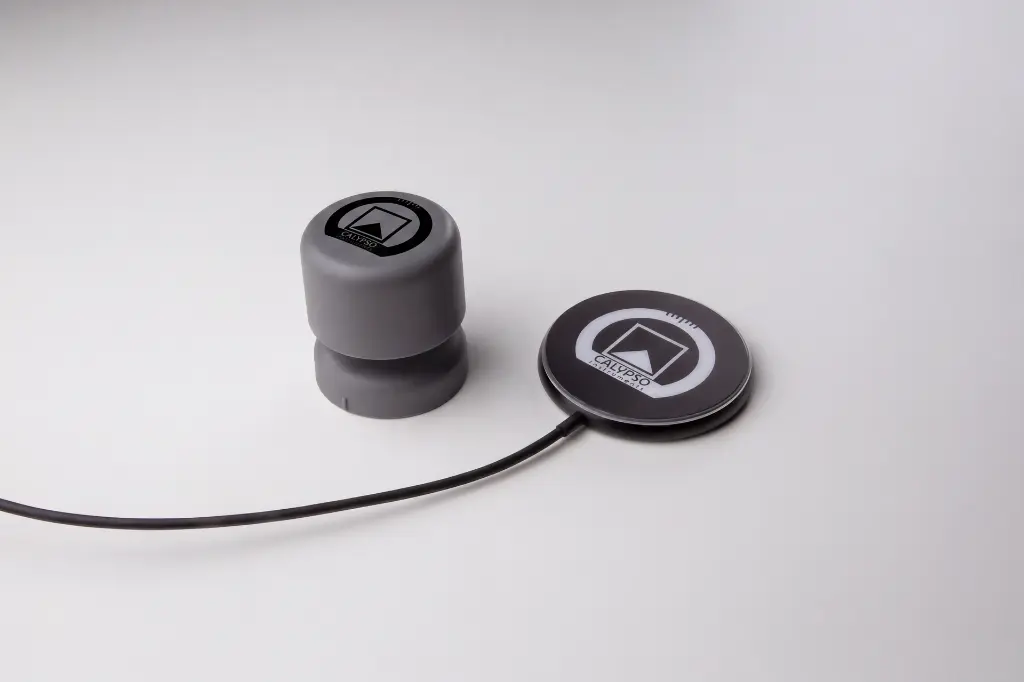

            • Qi wireless charger plus USB cable
            • Travel pouch
            • Serial number on the packaging
            • User guide at ballisticswindmeters.com, linked by QR code on the packaging


            Product Reference

            SKU/CMI product number: CMI1085.


            CategorySpecValue
            MaterialHousingInjected engineering plastic (grey)
            DimensionsDiameter43 mm (1.69 in.)
            Height47 mm (1.85 in.)
            Weight78 g (2.75 oz.)
            Wind SpeedRange0.5 to 45 m/s (1.12 to 100 mph)
            Accuracy0.3 m/s or 3 % at 0 to 16 m/s (0 to 35.8 mph)
            5 % at 16 to 45 m/s (35.8 to 100 mph)
            Resolution0.01 m/s (0.0224 mph)
            Wind DirectionRange0 to 359°
            Accuracy3° at 1 to 5 m/s (2.24 to 11.2 mph)
            1° at 5 to 16 m/s (11.2 to 35.8 mph)
            6° at 16 to 45 m/s (35.8 to 100 mph)
            Resolution1°
            Wind DataOutputApparent and real wind speed and direction via App
            SensorsTypeUltrasonic transducers (4x), no moving parts
            Sample RateRate1 Hz
            Configurable UnitsWindm/s, km/h, knots, mph
            Data OutputBluetoothBLE 5.1 or beyond
            RangeUp to 30 m (98 ft) in open space
            FirmwareUpdatesUpgradable via Bluetooth
            PowerTypeBattery powered

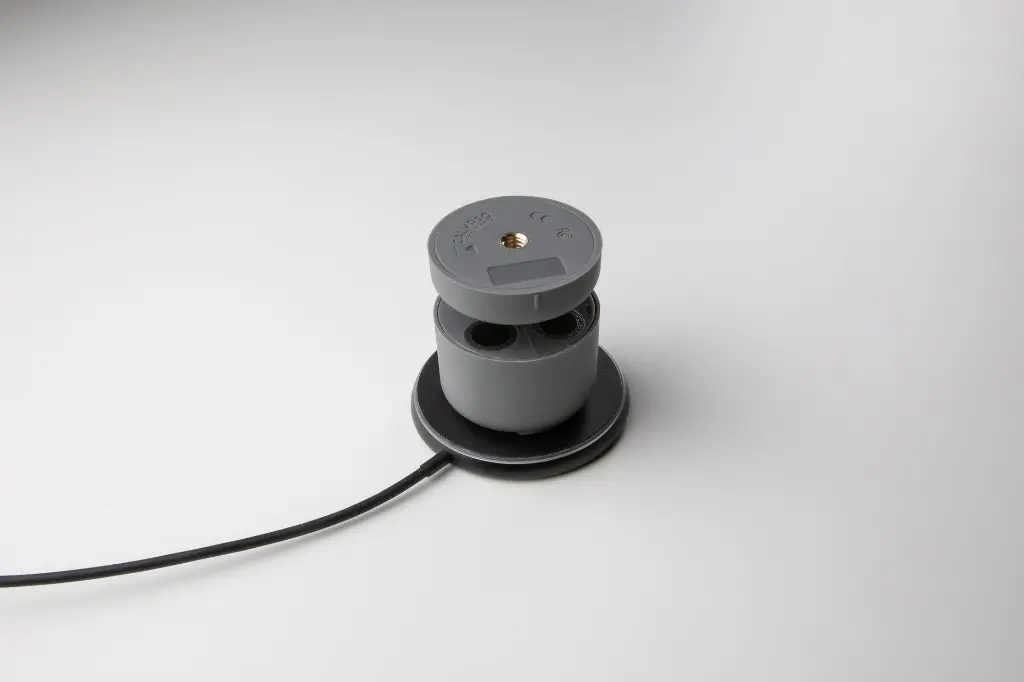

            ChargingQi wireless (charge upside down), approx. 1 hour
            Battery life (active use)Up to 300 hours
            Battery life (standby)2,000 hours
            MountThread1/4" female thread (tripod standard)

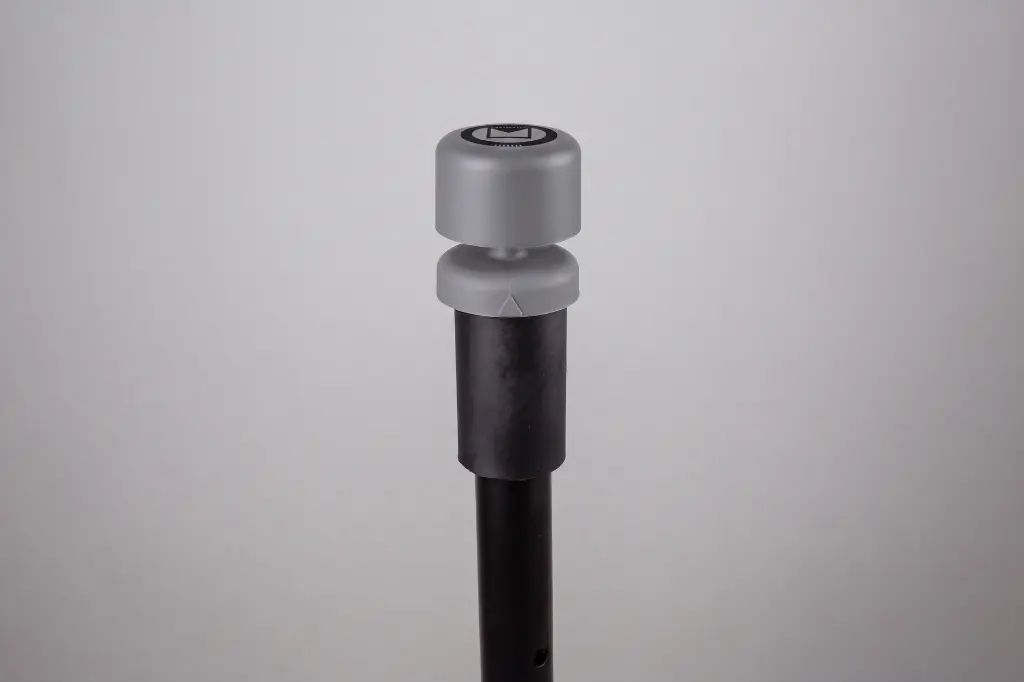

            Mast mountCMI1028
            Phone mountCMI1023
            EnvironmentalProtectionIPX8
            Operating temperature-15 to 60 °C (5 to 140 °F), no frost
            Operating humidity0 to 100 % RH
            App CompatibilityAppCalypso Ballistics App (iOS and Android)


            Portable Mini Ballistics User Manual

            Portable Mini Ballistics Data Sheet

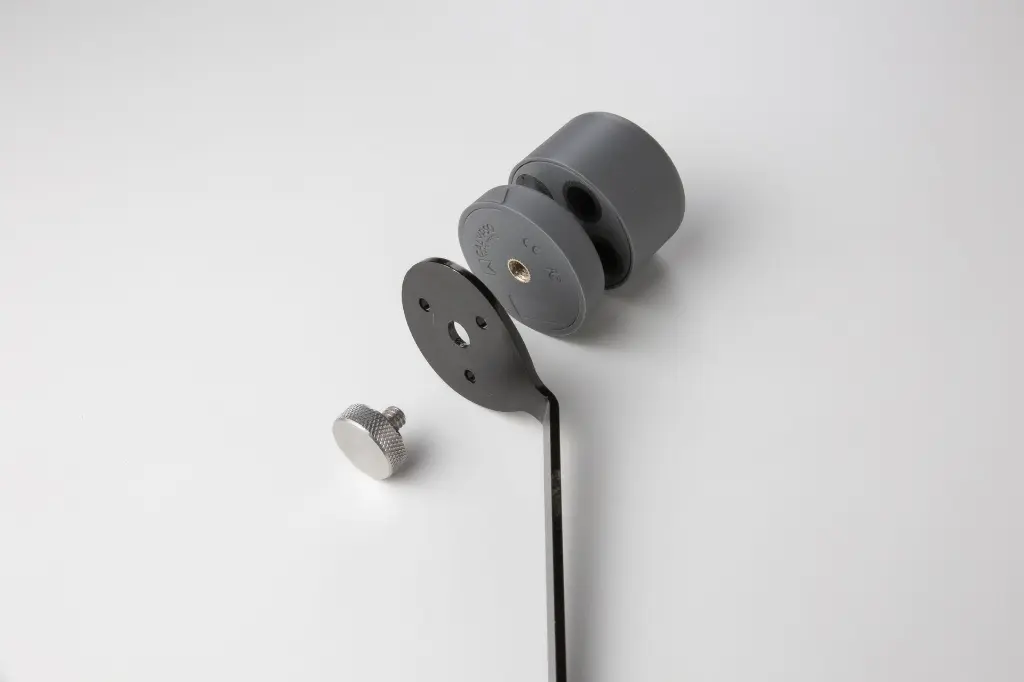

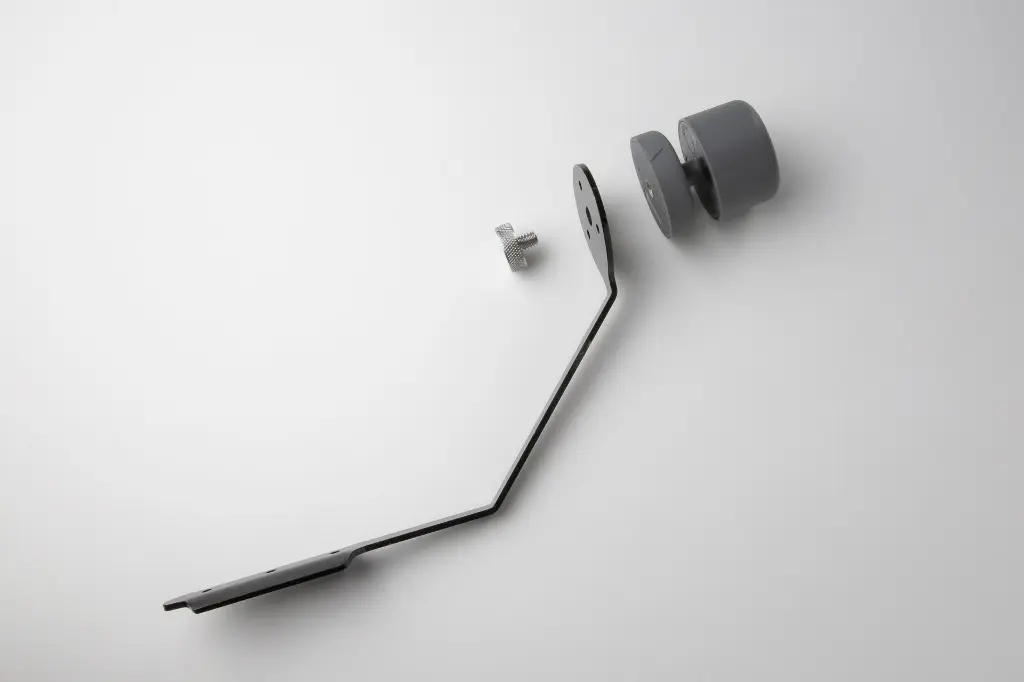

            Mast Mount for Mini
